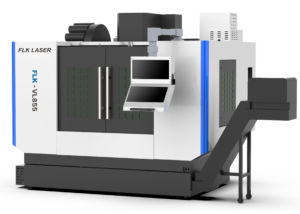

Vertical Machining Center FLK-VL855
- Medium-sized tool
- Multi-variety and small batch processing of complex parts
- Can automatically complete milling, drilling, and other processes after one clamping
Model
VL855
Worktable Dimension (mm)
1000×550
Maximum Load (kg)
500
T-Slot Size (mm)
5-18-90
Distance from Spindle Center to Z-Axis Guideway Surface (mm)
590
Speed Range (r/min)
8000
Feed Speed (mm/min)
1-10000
X/Y/Z Axis (mm)
0.008
X/Y Axis Repeated Positioning Accuracy (mm)
0.005
Overall Dimensions (L*W*H, mm)
2600x2380x2400
Approx. Gross Machine Weight (kg)
5300
