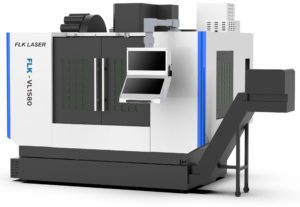

Vertical Machining Center FLK-VL1580
- Medium-sized machine tool
- Workpiece can automatically complete multiple processes after one clamping
- Multi-variety and small batch processing of complex parts
Model
VL1580
Worktable Dimension (mm)
1600×800
Maximum Load (kg)
1500
T-Slot Size (mm)
7-22-110
Distance from Spindle Center to Z-Axis Guideway Surface (mm)
855
Speed Range (r/min)
6000
Feed Speed (mm/min)
1-10000
X/Y/Z Axis (mm)
0.008
X/Y Axis Repeated Positioning Accuracy (mm)
0.005
Overall Dimensions (L*W*H, mm)
4300*3200*2800
Approx. Gross Machine Weight (kg)
10000
