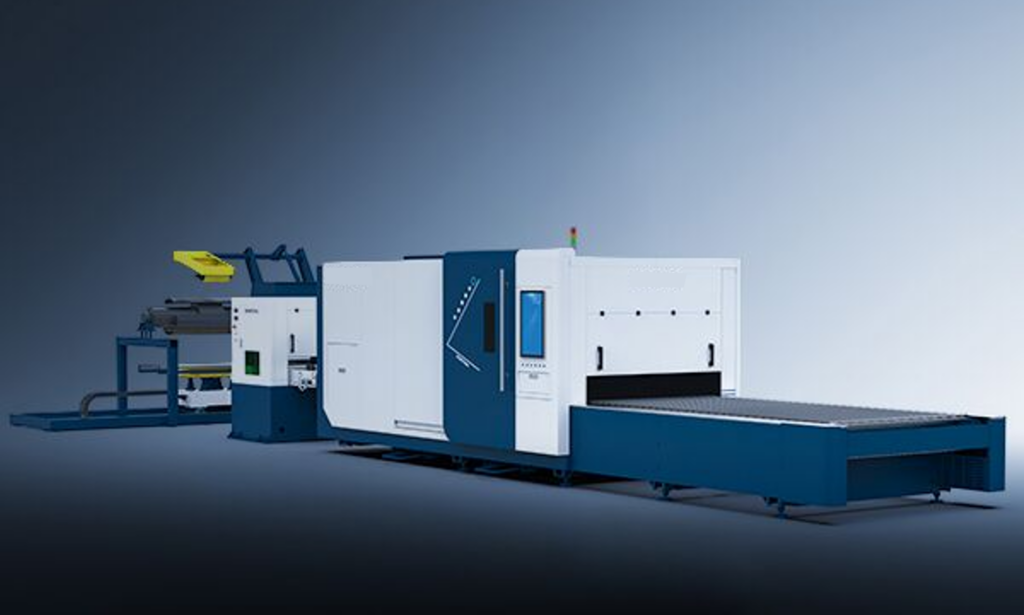

Coil Laser Blanking Line for 0.6-2mm Steel

  • Four functions
  • Mass and high-mix low volume work available
  • Good for labor-intensive industries
Learn More

Model

SF1502CH

Decoiling and Leveling Unit

Size of Sheet Coil (L*W, mm)

Standard Innter Diameter of Sheet Coil (mm)

Maximum Outer Diameter of Sheet Coil (mm)

Weight of Sheet Coil (T)

Maximum Feed Speed (m/min)

Leveling Accuracy (mm²)

Working Area (L*W, mm)

3000*1500*2 / 4000*1500*2

Φ508

Φ1400

8-10

10

±2

3000*1500*2 / 4000*1500*2

Laser Cutting Machine

Laser Power (kW)

Working Area (L*W, mm)

X/Y Axis Positioning Accuracy (mm)

X/Y Axis Repositioning Accuracy (mm)

3-6

3000*1500 / 4000*1500

±0.05

±0.02
